Vertical Circulating Conveyers

Source: NERAK Inc.

Vertical Circulating Conveyers
Based on the Paternoster principle, are designed to handle unit loads continuously with a loading and unloading facility at each level...

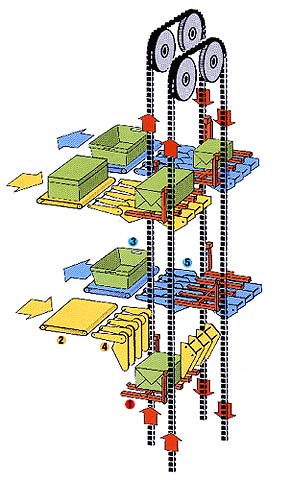

Based on the Paternoster principle, Vertical Circulating Conveyers are designed to handle unit loads continuously with a loading and unloading facility at each level. They perform continuous vertical conveying with feeding and discharging at unlimited numbers of floors, connecting between floors for production and warehousing applications Systems are available for identical or different dimensioned articles. High capacity up to 1,200 units per hour for postal and warehouse distribution centers.

The system also uses rubber chains from which the carrying platforms are suspended. Loads are fed on to the platforms on the way up and discharged on the way down. There are two models available - one for identical units, the other for handling different sized loads.

NERAK Inc., P.O. Box 308, Bradfordwoods, PA 15015-0308. Tel: 724-934-3396; Fax: 724-934-3831.
